Recommended format: .STL Supported formats: .3MF/.STP (Internally converted) Note: Total uploads are limited to 100MB per session.

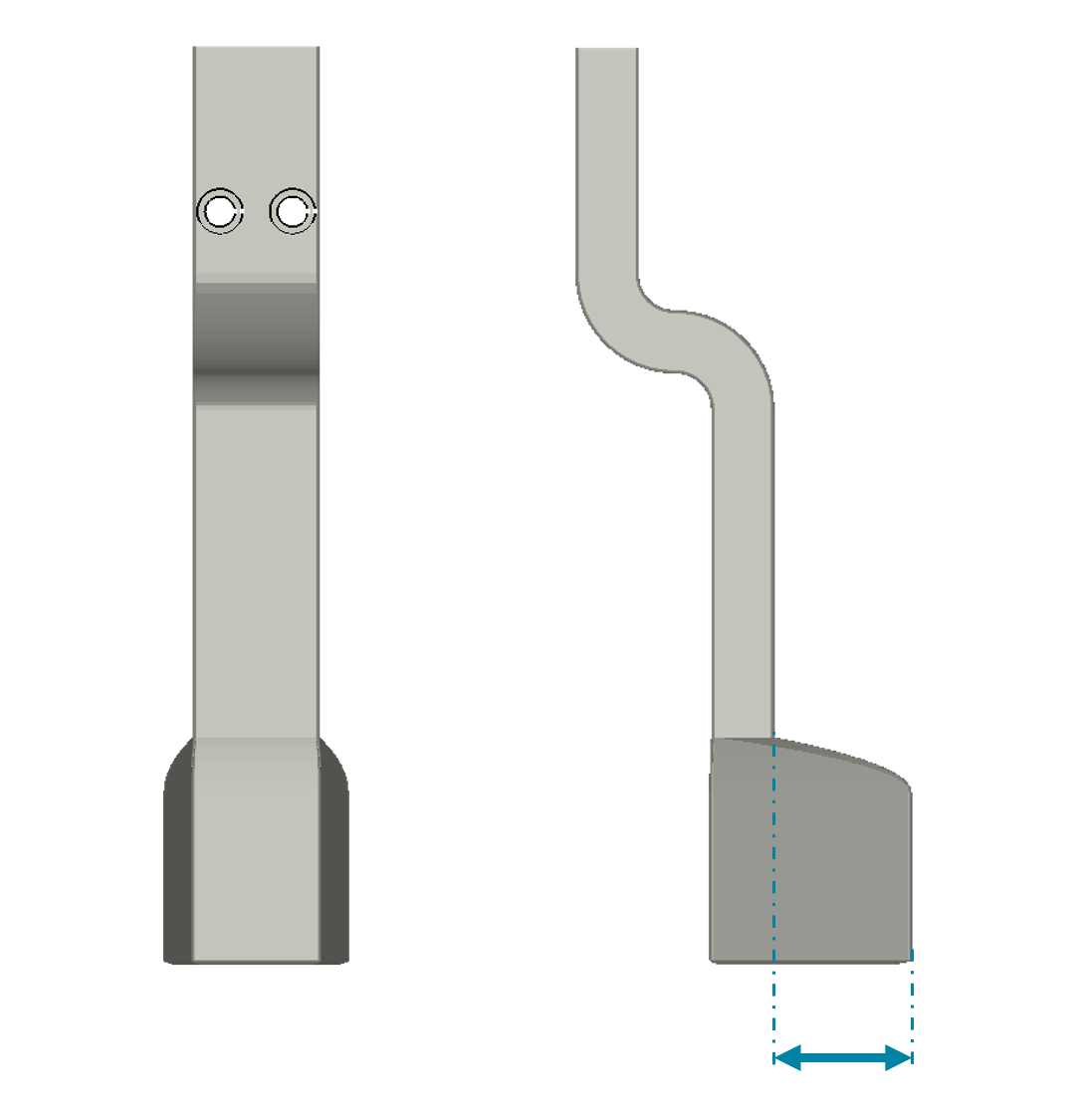

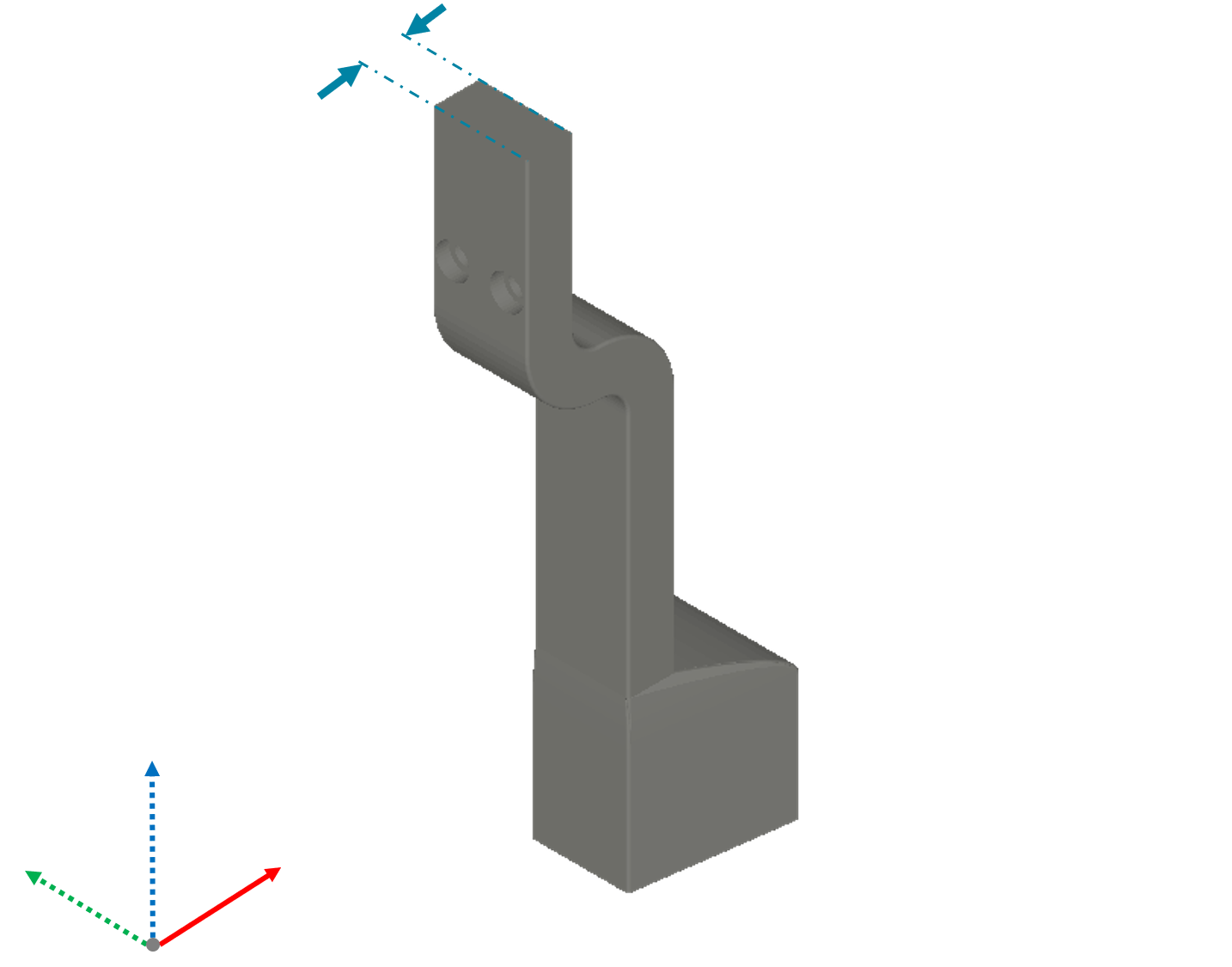

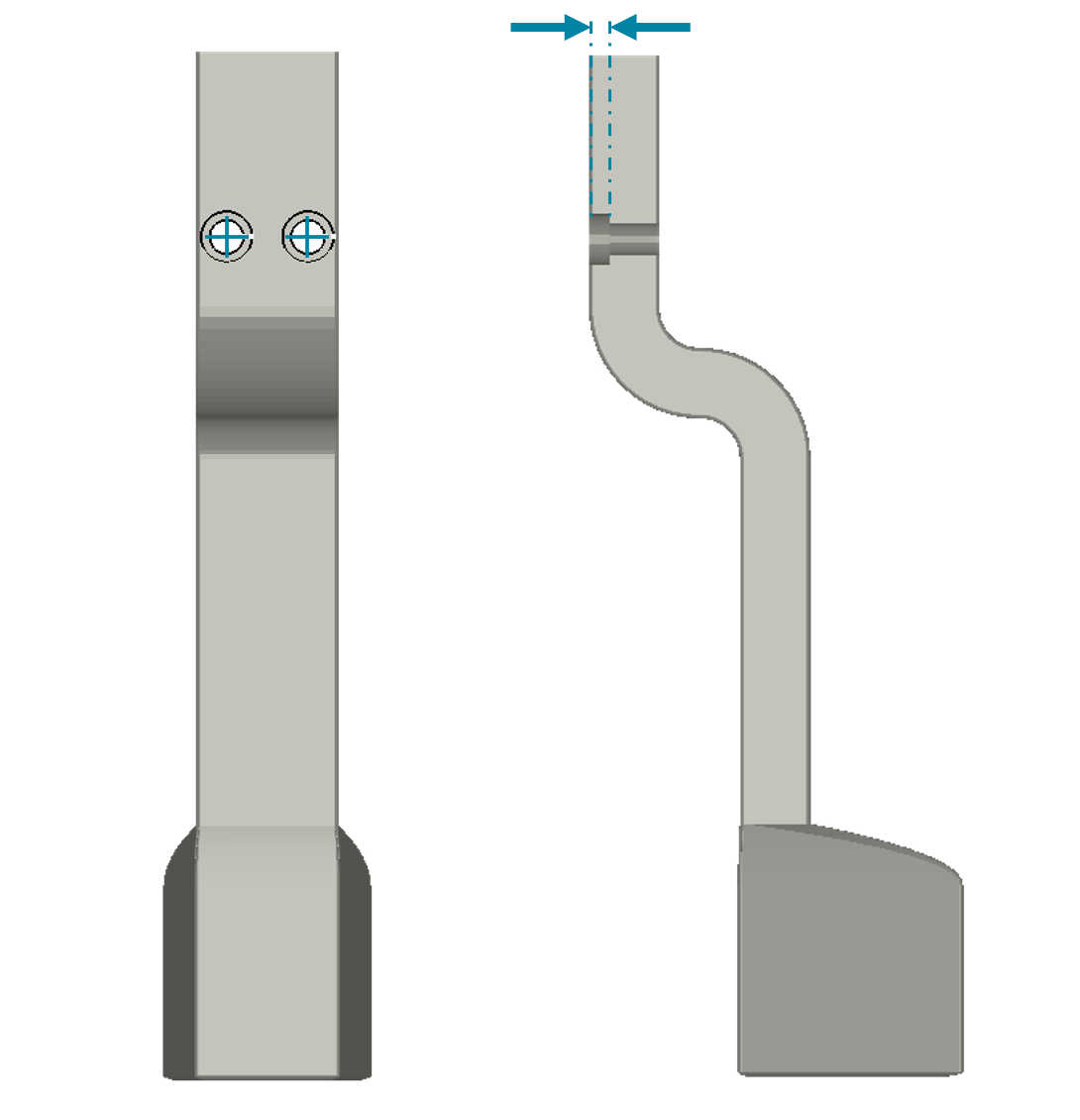

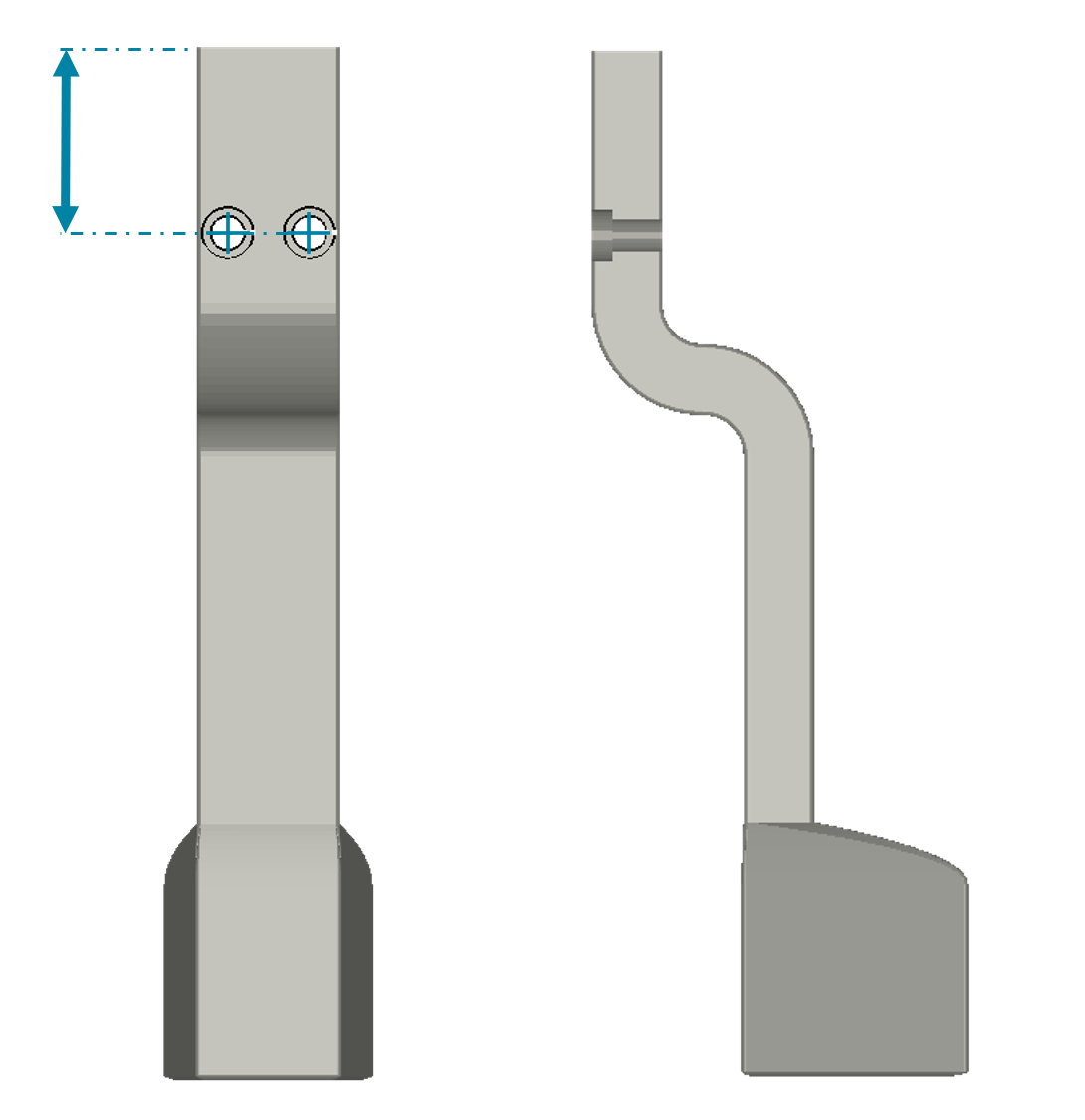

Files larger than 5MB are automatically optimized to enhance performance. Try the app with sample data - no file needed. Transparent Opaque The mounting holes of the fingers can be configured to match the target gripper interface. Schunk KGG 60-40 Schunk EPG-40 Hand-E Custom None Model center Center of gravity Custom position Outside Inside Select the type of fingers and the gripping direction. Set the finger profile size and adjust the radius for the rounded corners. Curved fingers Straight fingers Fingertips The size of the fingertips can be adjusted in three dimensions to generate a good contact area for the workpiece. Add a second material layer inside the cut out, perfect for scratch protection or surface customization.​ Preview and export your files for 3d-printing.
